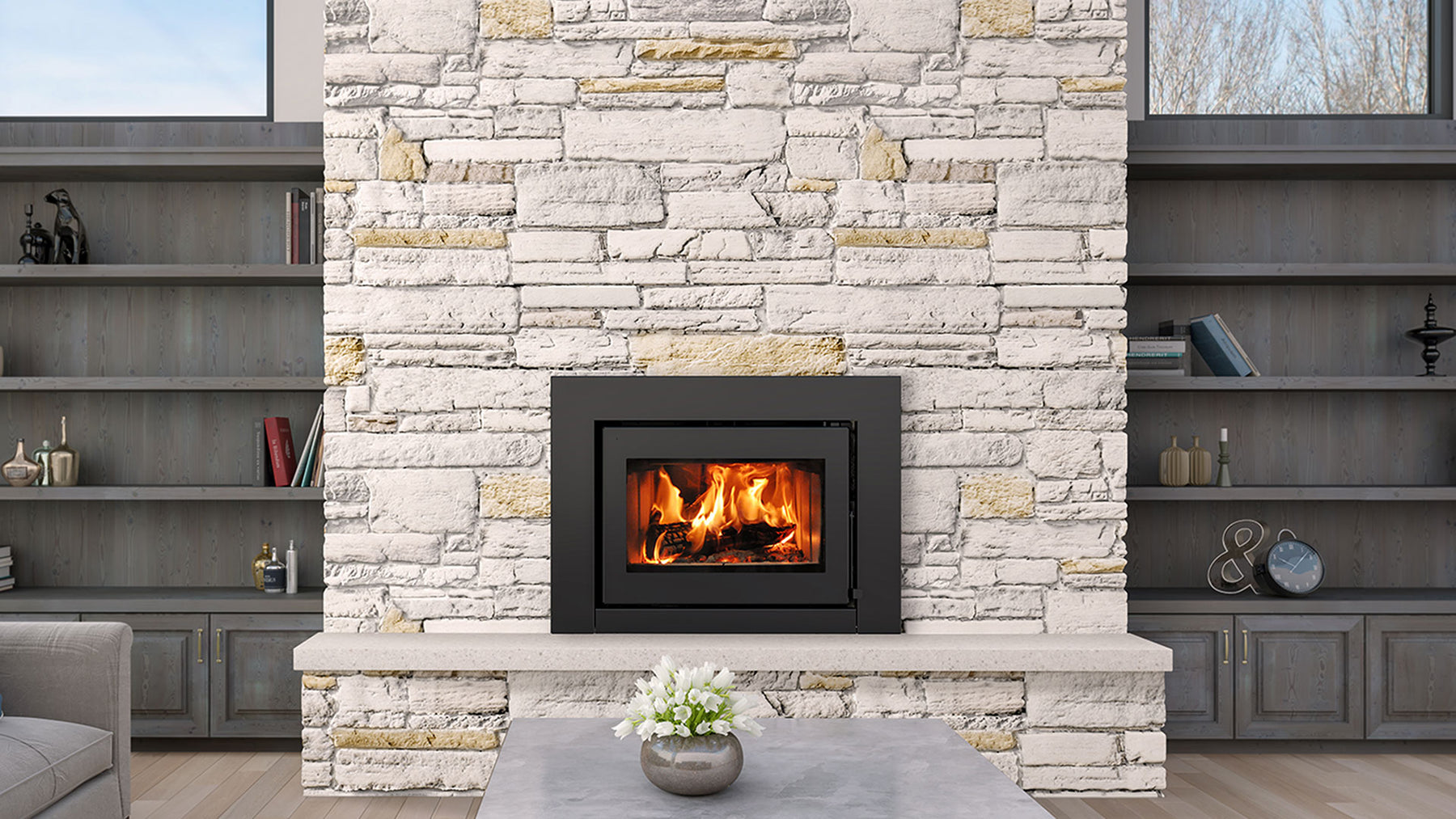

RSF: Focus 3600Bi -Includes Standard 27-1/4" H x 36-1/2" W Insert w/Surround

RSF: Focus 3600Bi -Includes Standard 27-1/4" H x 36-1/2" W Insert w/Surround

RSFG-F3600BIN

Introducing a new chapter for the RSF brand. The Focus 3600Bi is the very first fireplace insert developed by RSF. Its quality construction, low emissions, and high efficiency embody over 30 years of quality fireplace construction and experience.

  • Clean, modern styling
  • Easy to install
  • Certified at 1.7 g/hr
  • Detachable flue collar with pull handle
  • Optional heat activated internal blower
  • Optional oversized backing plate (42” x 30”)
GENERAL SPECIFICATIONS
Outside Dimensions 31 3/4″ W X 24 5/16″ H X 21″ D
Firebox Dimensions 2.04 cu ft

Based on overall firebox dimensions, firebox volume per certification testing is 1.6 cu ft

Shipping weight 340 lbs
Glass viewing size 241 in2 20 ½” W x 11 ¾” H
Firewood Length Tested with cribwood. Can accept up to 18″ logs.
Chimney 6″ ExceLiner
Door Finish Black
PERFORMANCE
EPA  Certification

1.7 g/h

CSA B415.1.22 emission

BTU Output

19,077 BTU/h

Based on EPA certification testing using cribwood and calculations from CSA B415.1.22

BTU Maximum

50,000 BTU/h

Based on engineering calculations using firebox volume, efficiency, loading density (12lb/cu ft for hardwood), average humidity, reloading interval, type of installation, etc.

Heating Capacity

800 to 1,500 ft2

Depends primarily on wood quality, ambient air temperature and building heat loss.

Optimal Efficiency

75.3%

Low Heating Value (LHV) using CSA B415.1:22 calculations.

EPA Average Efficiency

70%

High Heating Value (HHV) using CSA B415.1:22 calculations.

EPA Average CO

1.3 g/min

Carbon Monoxide (CO), using data from EPA crib wood testing
