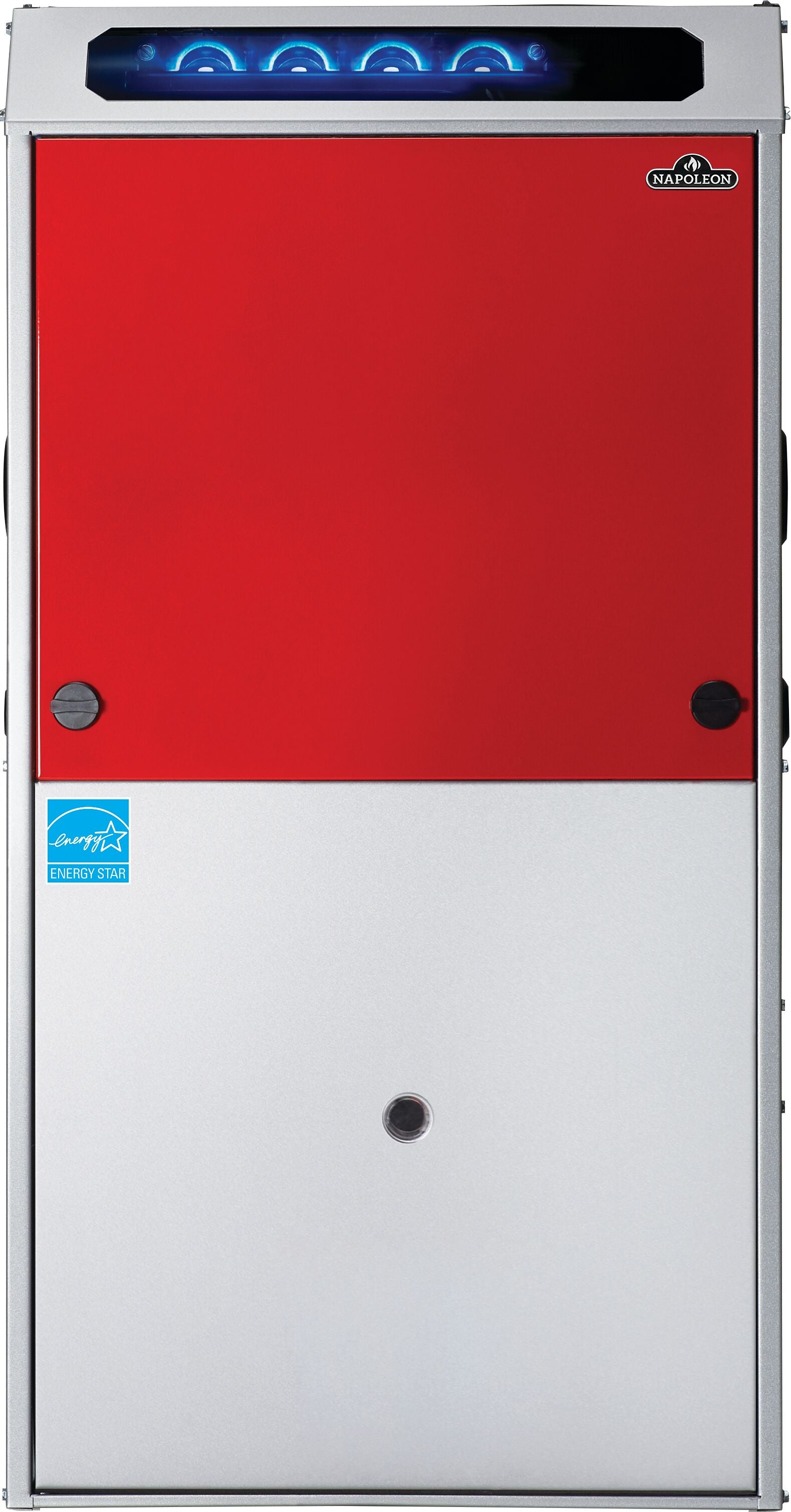

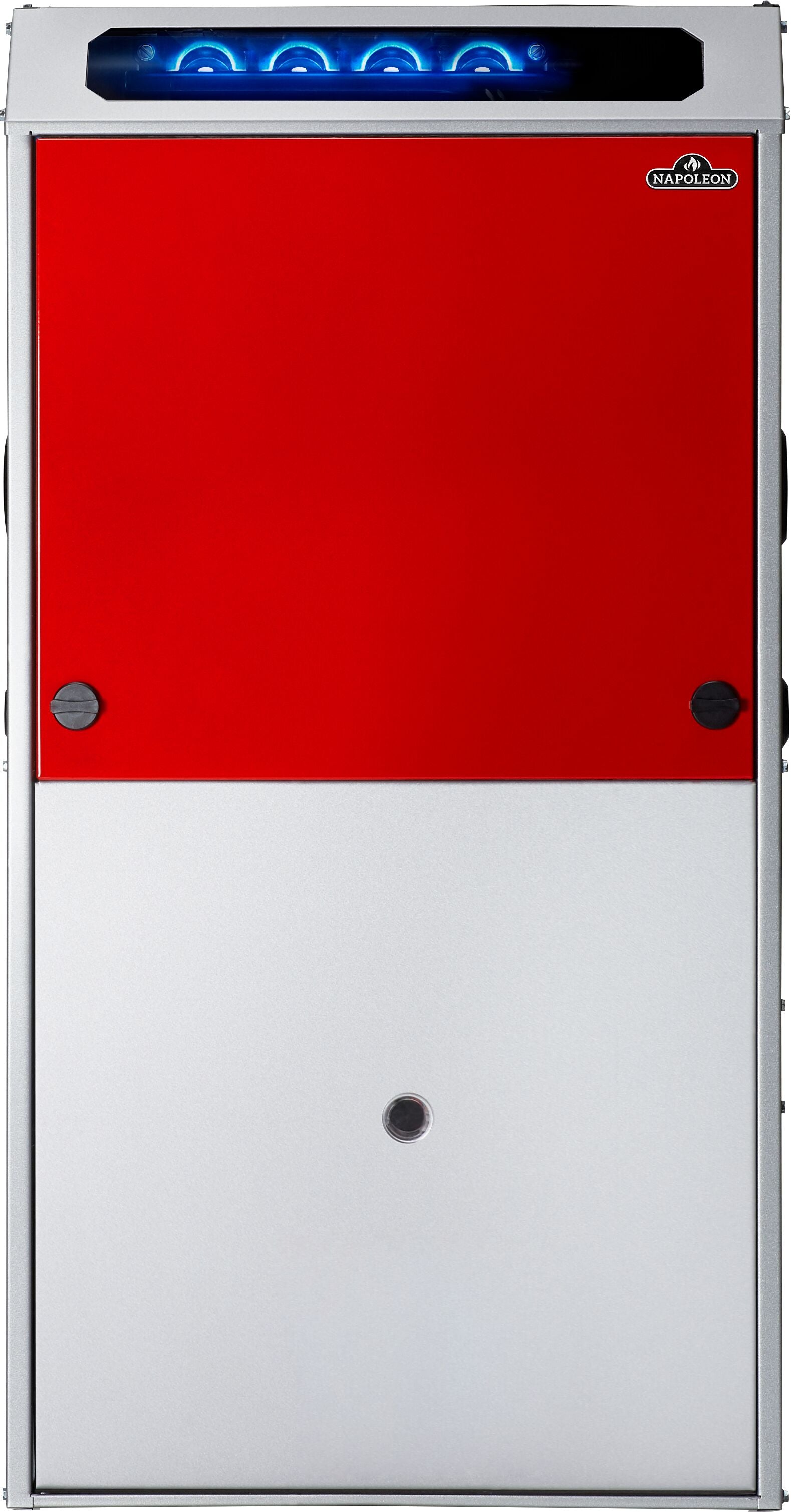

Premium 9600 Series Gas Furnace - WPV070T3AA-N
NATURAL GAS OR PROPANE
Can a furnace be one of the most energy-efficient in the industry and still be stylish? Napoleon's 9600 Series gas furnace says so. Meeting all heating needs with a two-stage system that features an energy-efficient low-fire stage and an automatic high-fire stage that provides extra heat as needed. It's like two furnaces in one. Featuring a fully insulated cabinet and motors that gradually change speed to reduce the initial rush of air for near-silent operation. The modular design and components ensure that maintenance and service are incredibly easy as well as installation, thanks to flexible fit options.
Quantity:
- 35,000 to 120,000 BTU's and up to 96% AFUE
- Fully Insulated Cabinet for WHISPER QUIET™ Operation
- Modular Components for easier maintenance
- Variable Speed Technology soft-starts and stops motor for quieter operation
- Patented Vortex Technology increases efficiency and extratcs maximum heat
- Two-Stage Heating increases heat output when needed
- Four Flexfit installation postitions for more versatile space management
- Upflow, Right, Left, Down
- SureView Burner Window, a unique view of the flames in operation
- Available in Natural Gas and Propane Gas models
- Energy Star Rated
- UV HomeShield Furnace Lamp Optional
- Total Max (BTU): 70000 BTU
- Packaging Height (in): 41.75 in
- Packaging Length (in): 19 in
- Packaging Weight (lbs): 140 lbs
- Packaging Width (in): 31 in
- Product Depth (cm): 75 cm
- Product Depth (in): 29.5 in
- Product Height (cm): 86.5 cm
- Product Height (in): 34 in
- Product Width (cm): 44.5 cm
- Product Width (in): 17.5 in
-
Warranty:
- 10 Year Parts Limited
- 10 Year Unit Replacement Limited
- Lifetime Heat Exchanger Limited
- Product Manual: W415-3072_WPV-N_-e-f_10.19.21.pdf
