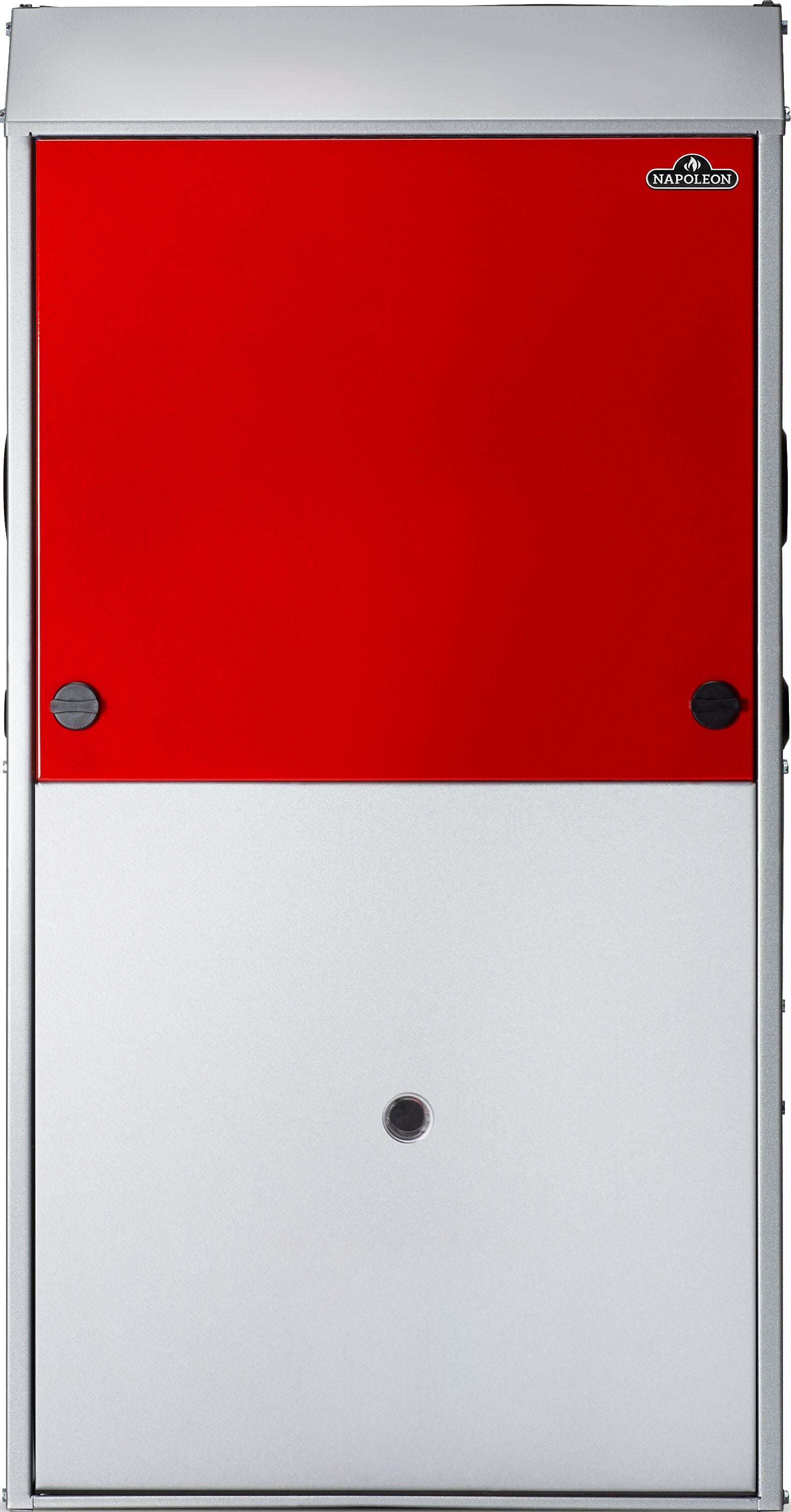

Essential 9600Q Series Gas Furnace - WSX040T2AB-N
NATURAL GAS OR PROPANE
Napoleon's 9600Q Series gas furnace will meet all heating needs with a two-stage system that features an energy-efficient low-fire stage and an automatic high-fire stage that provides extra heat as needed. It's like two furnaces in one. Featuring a fully insulated cabinet and motors that gradually change speed to reduce the initial rush of air for near-silent operation. The modular design and components ensure that maintenance and service are incredibly easy as well as installation, thanks to flexible fit options.
Quantity:
- 40,000 - 80,000 BTU models available and up to 96% AFUE
- Can be used for new construction heat
- High efficiency ECM Constant Torque Blower Motor
- T140 Aluminized Vortex Turbulator Heat Exchanger
- Aluminized Multi-Port In-Shot Burners
- Self-Diagnostic Integrated Furnace Control
- Two-stage control: first stage start up operates at 60% of full heating capacity
- High quality stainless steel primary and secondary heat exchanger
- Manufactured for Natural Gas, Propane conversion kit available
- Optional SureView Wedge Kit Available and upgraded red door kit
- Energy Star Rated
- Total Max (BTU): 40000 BTU
- Packaging Height (in): 41.75 in
- Packaging Length (in): 19 in
- Packaging Weight (lbs): 127 lbs
- Packaging Width (in): 31 in
- Product Depth (in): 29.50 in
- Product Height (in): 34 in
- Product Width (in): 17.50 in
-
Warranty:
- 10 Year Parts Limited
- Lifetime Heat Exchanger Limited
- 10 Year System Limited
- Product Manual: W415-3101_WSX-N_-e-f_12.09.21.pdf
